Anthropic

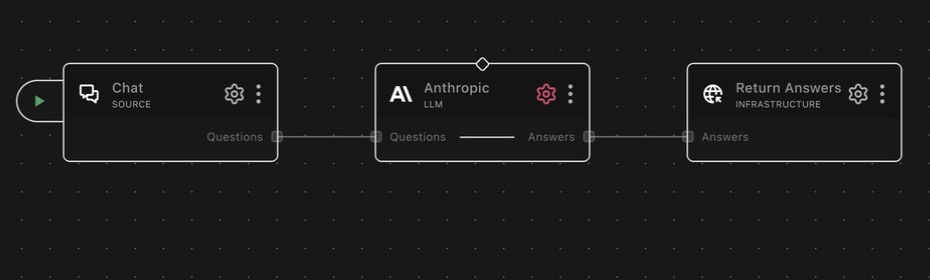

A RocketRide LLM node that connects Anthropic's Claude models to your pipeline.
What it does
Connects Anthropic's Claude models to your pipeline. Used primarily as an llm
invoke connection by agents, vector stores, database nodes, and other nodes that
need an LLM (classType: ["llm"], capability invoke). Can also be used directly
in a pipeline via lanes.
Built on langchain-anthropic (ChatAnthropic) with the anthropic SDK used
directly for save-time validation. The configured modelOutputTokens is passed to
the model as max_tokens. Token counts for budgeting are estimated at roughly
4 characters per token.
When the selected model is flagged as reasoning-capable, the node enables
extended thinking automatically and streams the model's reasoning over the
thinking SSE lane; see "Extended thinking" below.
Configuration
Lanes
| Lane in | Lane out | Description |
|---|---|---|
questions | answers | Send a question directly, receive a generated answer |
Fields
| Field | Type / Default | Description |
|---|---|---|
profile | enum, claude-sonnet-4-6 | Which Claude model to use (see Profiles below) |
apikey | string | Anthropic API key. Must start with sk-ant (e.g. sk-ant-... or sk-ant-api03-...) |
modelSource | string | Where the model definition comes from (manual or openrouter) |
model | string (custom profile only) | Anthropic model ID, used only when profile is custom |
modelTotalTokens | number (custom profile only) | Total context tokens for the custom profile; must be greater than 0 |
The model ID and token limits for named profiles are fixed by the profile. Only the
custom profile exposes model and modelTotalTokens directly.
Profiles
Default profile: Claude Sonnet 4.6.
| Profile | Model ID | Context tokens | Output tokens |
|---|---|---|---|
| Claude Sonnet 4.6 (default) | claude-sonnet-4-6 | 1,000,000 | 128,000 |
| Claude Opus 4.7 | claude-opus-4-7 | 1,000,000 | 128,000 |
| Claude Opus 4.6 | claude-opus-4-6 | 1,000,000 | 128,000 |
| Claude Sonnet 4.5 | claude-sonnet-4-5 | 1,000,000 | 64,000 |
| Claude Opus 4.5 | claude-opus-4-5 | 200,000 | 64,000 |
| Claude Haiku 4.5 | claude-haiku-4-5 | 200,000 | 64,000 |
| Custom | (user-specified) | 200,000 (editable) | (none set) |
Extended thinking
Whether thinking is requested is driven by the model's capabilities.reasoning
flag in the node configuration (stamped from OpenRouter model sync). When set,
the node builds provider-correct thinking parameters based on the model name.
Routing prefixes such as openrouter/anthropic/ are stripped before matching.
| Model | Thinking parameters sent |
|---|---|
| Any Haiku model | None. Haiku has no extended thinking; sending parameters would return a 400. |
claude-opus-4-7 / claude-opus-4-8 | thinking: {type: "adaptive", display: "summarized"} (adaptive thinking) |
| Other Claude models | thinking: {type: "enabled", budget_tokens: N} plus the interleaved-thinking-2025-05-14 beta header, where N is half the output-token limit (minimum 2,048, always below max_tokens). Skipped entirely if the output window is too small for a valid budget. |
When thinking is actually enabled, responses are streamed through the native
Anthropic Messages API handler (ai.common.llm_native_stream, provider
anthropic) so that thinking deltas (which LangChain drops) are preserved and
forwarded on the thinking SSE lane. Non-reasoning models stay on the default
LangChain streaming path.
Authentication
Provide an Anthropic API key in the apikey field. The key is validated at
startup: it must be non-empty and start with sk-ant (covers both standard
sk-ant-... and newer sk-ant-api03-... formats). If the key fails this check,
the node raises Invalid Anthropic API key format, please check your API key.
The key is read at construction time and not stored by the node.
Save-time validation
When the node configuration is saved, a lightweight validation pass runs before the first pipeline execution:
- Checks that
modelTotalTokens(custom profile) is greater than 0. - Sends a minimal one-token probe request (
max_tokens: 1) to the configured model using the configured key.
Any failure (bad key, unknown model, rate limit, network error) is surfaced as a
concise single-line warning in the form Error <status>: <type> - <message>,
extracted from the API's structured error payload when available. Network or SDK
errors that carry no structured payload fall back to the raw exception message,
collapsed to a single line.
Schema
| Field | Type | Description | Default |
|---|---|---|---|
anthropic.profile | string | Model LLM model | "claude-sonnet-4-6" |
model | string | Model Anthropic model | |
modelTotalTokens | number | Tokens Total Tokens |
Dependencies
langchain-anthropicanthropiclangchain-corelangchain
