A RocketRide database node that answers natural-language questions against a PostgreSQL database and inserts structured pipeline data into tables.

What it does

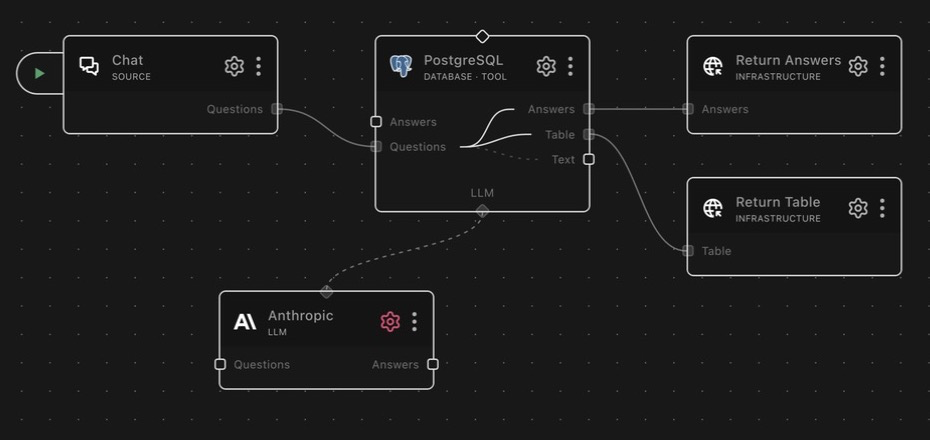

Plays two roles in a pipeline. As a pipeline node, it receives natural-language questions on the questions lane, asks a connected LLM to translate them into SQL, executes the query, and emits the results; it also accepts structured data on the answers lane and inserts it into the configured table. As a tool node, agents call it directly through three functions: get_data, get_schema, and get_sql.

Uses SQLAlchemy with the psycopg2 driver (psycopg2-binary). The connection string is built as postgresql+psycopg2://user:password@host/database; user, password, and database are URL-encoded so reserved characters (@, /, #, :) are safe, and the host may carry an explicit port (e.g. localhost:5433).

Safety defaults: only SELECT statements are permitted for queries (whitelist check, see SQL safety below), generated SQL is validated with EXPLAIN against the live database before execution, and raw SQL execution (QuestionType.EXECUTE) is disabled by default via allow_execute.

The same implementation also ships as a Supabase preset (services.supabase.json, protocol db_supabase://): Supabase is managed Postgres, so it is a branded configuration, not separate code.

---

Connections

Connection	Required	Description
llm	yes	LLM used to generate SQL from natural language

---

Configuration

Lanes

Lane in	Lane out	Description
questions	table	Translate question to SQL, execute, return as a markdown table
questions	text	Translate question to SQL, execute, return as text
questions	answers	Translate question to SQL, execute, return as answers
answers	(none)	Parse structured rows and insert into the table

If the LLM decides a question is not a database query, its text response is emitted instead of query results.

Two special question types are handled on the questions lane:

• QuestionType.DIALECT: emits {"dialect": "postgres"} on the answers lane so SDK callers can branch on the underlying engine.
• QuestionType.EXECUTE: runs the question text as raw SQL (read or write, no LLM, no safety check). Gated by allow_execute; when disabled the request is logged and dropped. SELECT results are capped at 25,000 rows; write statements report affected_rows.

Fields

Field	Type	Description
host	string	Default "localhost". Host name or IP address of the PostgreSQL server, optionally including a port (e.g. localhost:5433)
user	string	Default "postgres". User to connect to the PostgreSQL server
password	string	Password to connect to the PostgreSQL server
database	string	Default "postgres". Name of database
table	string	Default "table". Name of table
db_description	string	Default empty. What is this database used for? Describe its content and purpose, this helps the LLM generate more accurate queries.
max_attempts	integer	Default 5. Maximum number of times to re-ask the LLM if EXPLAIN rejects the generated SQL
allow_execute	boolean	Default false. Permit QuestionType.EXECUTE callers to run raw SQL without LLM translation or safety checks. Leave OFF unless a trusted application explicitly needs to issue SQL directly.
profile	string	Default "default".

The single default profile presets database to postgres.

---

Available tools

When connected to an agent, the node exposes three functions (named under the configured server prefix, default postgres):

Tool	Description
get_data	Natural language to SQL, executes it, returns rows plus the generated SQL (default 250 rows, max 25,000 via limit)
get_schema	Returns tables, columns, types, primary keys, and foreign keys, for the full database or one table
get_sql	Natural language to SQL only, no execution

get_data and get_sql return valid: false with an error (unsafe SQL) or an answer (the question was not a database query) when no executable query is produced.

---

SQL safety & validation

Generated SQL passes two gates before execution:

1. Whitelist check: only statements beginning with SELECT (optionally prefixed by EXPLAIN) are allowed; everything else is rejected. Comments are stripped first so comment-based bypasses are neutralised, every statement in a multi-statement input is checked, SELECT ... INTO OUTFILE/DUMPFILE is blocked, and WITH (CTE) is deliberately excluded because PostgreSQL accepts CTE-into-mutation (e.g. WITH x AS (...) DELETE ...).
2. EXPLAIN validation: the query is validated against the live database. If EXPLAIN rejects it, the rejected SQL and the database error are fed back to the LLM for a corrected query, up to max_attempts times (default 5).

Insert operations never go through SQL generation; they use the answers lane.

---

Data insertion

Rows arriving on the answers lane are inserted into the configured table:

• The table is auto-created from the shape of the first batch if it does not exist (column types inferred from the data).
• Incoming keys are matched to columns case-insensitively (UserName maps to username); schema columns missing from the data are inserted as NULL.
• Lists and dicts are serialised as JSON strings; booleans are stored as 0/1.
• Each batch is inserted in a single transaction: on failure it is rolled back and the error re-raised.

---

Supabase preset

services.supabase.json registers the same node as Supabase (db_supabase://, prefix supabase). The connection is encrypted over TLS. Operational notes:

• Use the Supavisor pooler from the Supabase dashboard (Connect button): aws-0-<region>.pooler.supabase.com:6543 (transaction) or :5432 (session). It works over IPv4.
• The direct connection (db.<project-ref>.supabase.co:5432) is IPv6-only and will fail to resolve on networks without IPv6.
• For the pooler, the user must include your project ref: postgres.<project-ref>. Without the suffix the pooler returns no tenant identifier. For the direct connection it is just postgres.
• The database password comes from your Supabase project (Project Settings -> Database); the database name defaults to postgres.

---

Schema

PostgreSQL (services.json)

Field	Type	Description	Default
postgresdb.allow_execute	boolean	Allow direct query execution Permit QuestionType.EXECUTE callers to run raw SQL without LLM translation or safety checks. Leave OFF unless a trusted application explicitly needs to issue SQL directly.	false
postgresdb.database	string	Database name Name of database	"postgres"
postgresdb.db_description	string	Database description What is this database used for? Describe its content and purpose, this helps the LLM generate more accurate queries.	""
postgresdb.host	string	PostgreSQL host Host name or IP address of the PostgreSQL server, optionally including a port (e.g. localhost:5433)	"localhost"
postgresdb.max_attempts	integer	Max validation attempts Maximum number of times to re-ask the LLM if EXPLAIN rejects the generated SQL	5
postgresdb.password	string	Password Password to connect to the PostgreSQL server
postgresdb.profile	string		"default"
postgresdb.table	string	Table name Name of table	"table"
postgresdb.user	string	User User to connect to the PostgreSQL server	"postgres"

Supabase (services.supabase.json)

Field	Type	Description	Default
postgresdb.allow_execute	boolean	Allow direct query execution Permit QuestionType.EXECUTE callers to run raw SQL without LLM translation or safety checks. Leave OFF unless a trusted application explicitly needs to issue SQL directly.	false
postgresdb.database	string	Database name Name of database (Supabase default is 'postgres')	"postgres"
postgresdb.db_description	string	Database description What is this database used for? Describe its content and purpose, this helps the LLM generate more accurate queries.	""
postgresdb.host	string	Supabase host From the Supabase dashboard (Connect button), including the port. Recommended: the Supavisor pooler (works over IPv4) -> aws-0-.pooler.supabase.com:6543 (transaction) or :5432 (session). The Direct connection (db..supabase.co:5432) is IPv6-only and will fail to resolve on networks without IPv6.
postgresdb.max_attempts	integer	Max validation attempts Maximum number of times to re-ask the LLM if EXPLAIN rejects the generated SQL	5
postgresdb.password	string	Password Database password from your Supabase project (Project Settings -> Database)
postgresdb.profile	string		"default"
postgresdb.table	string	Table name Name of table	"table"
postgresdb.user	string	User Database user. For the pooler (recommended) it MUST include your project ref: postgres., without the . suffix the pooler returns 'no tenant identifier'. For the direct connection it is just: postgres	"postgres"

Dependencies

• psycopg2-binary ==2.9.12
